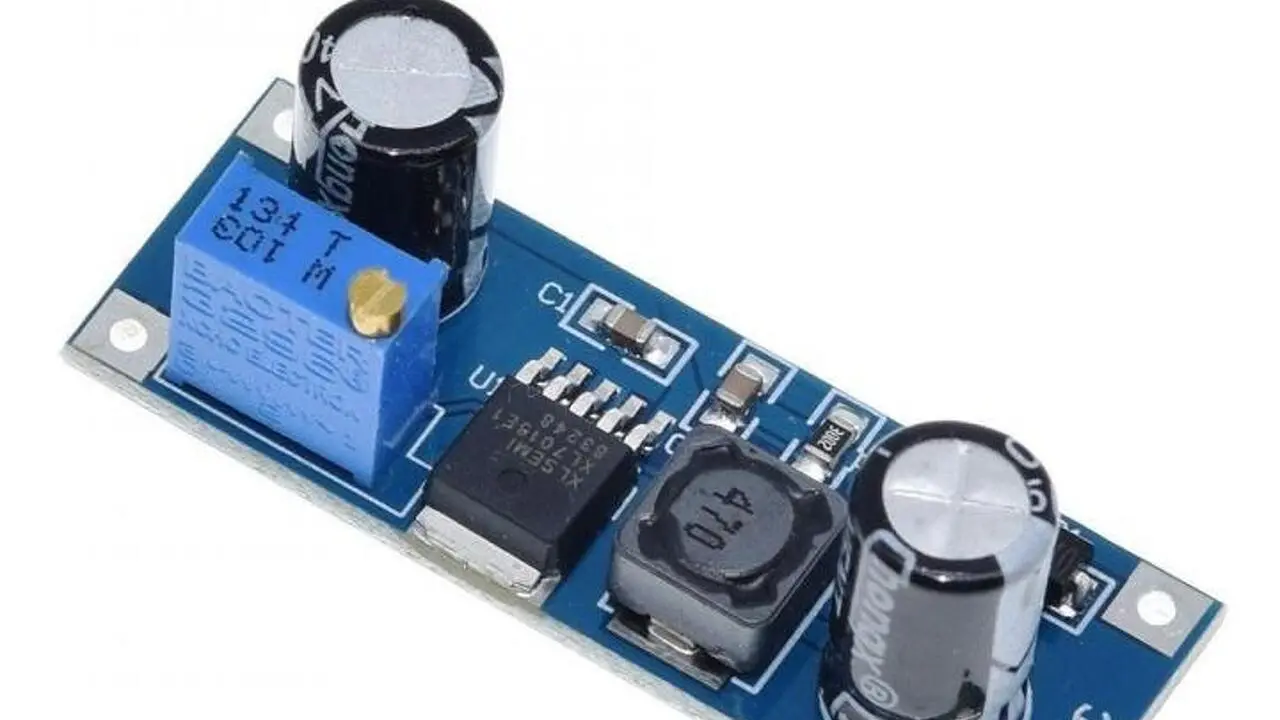

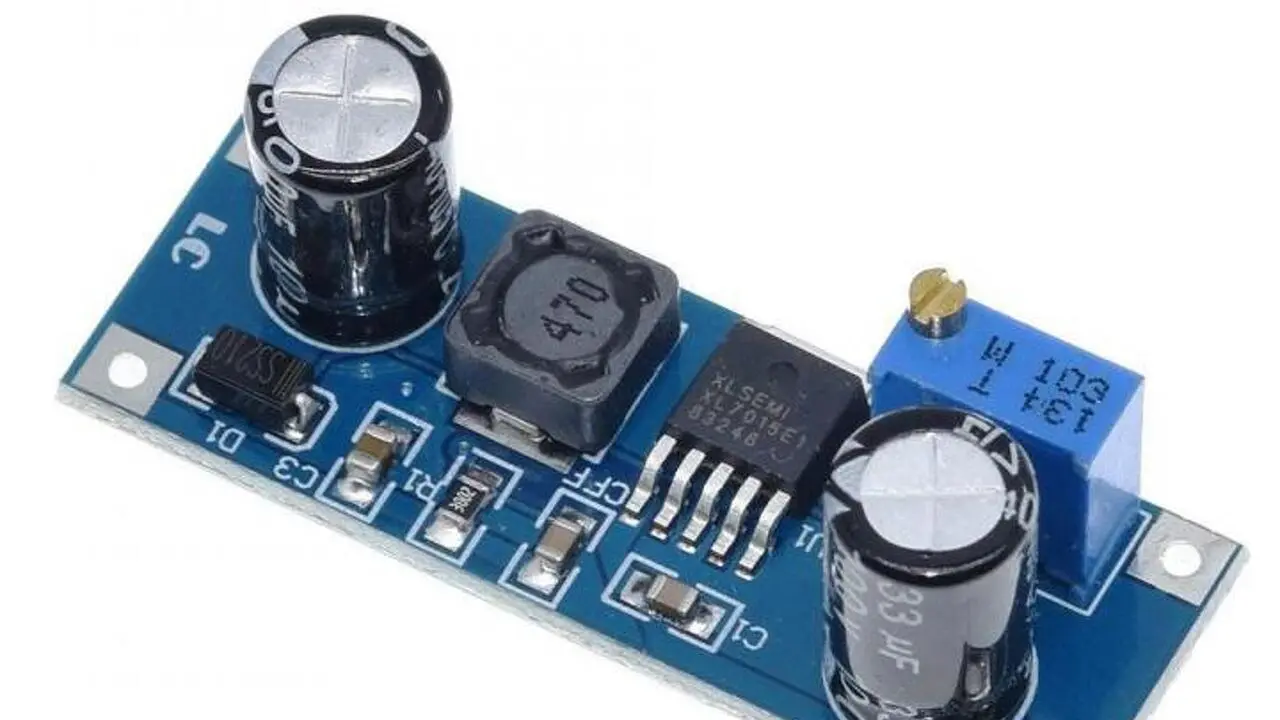

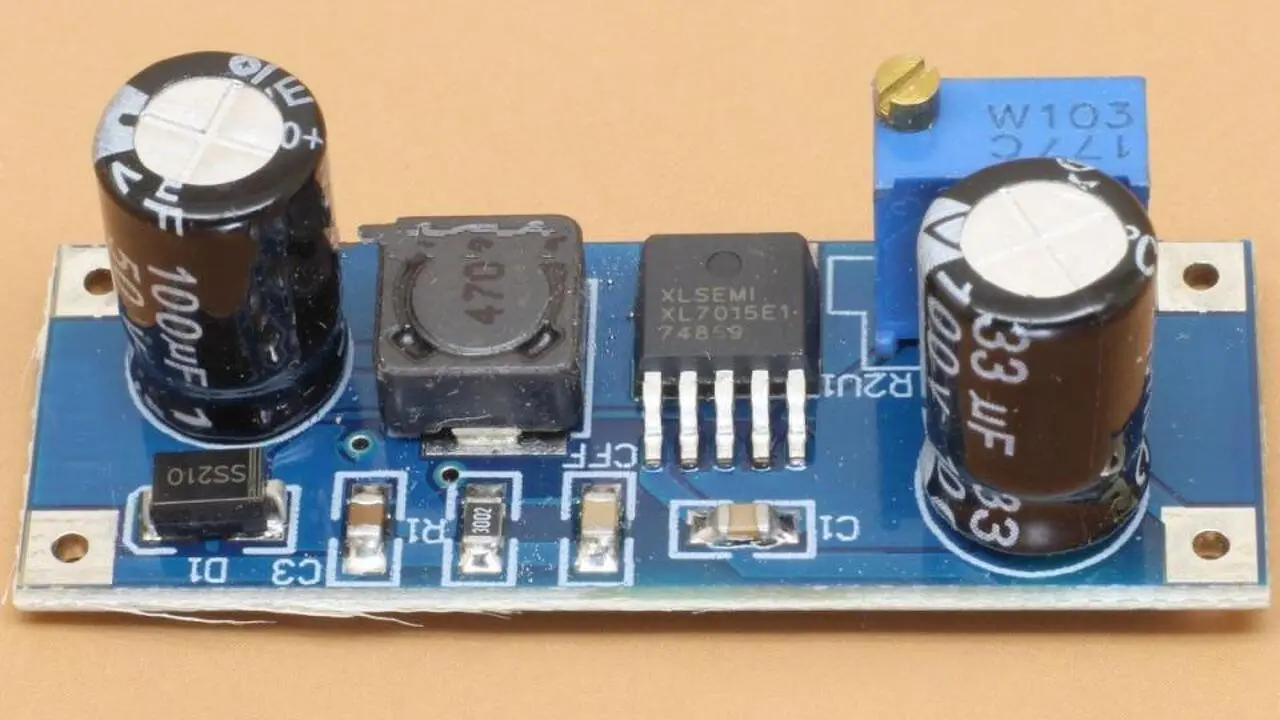

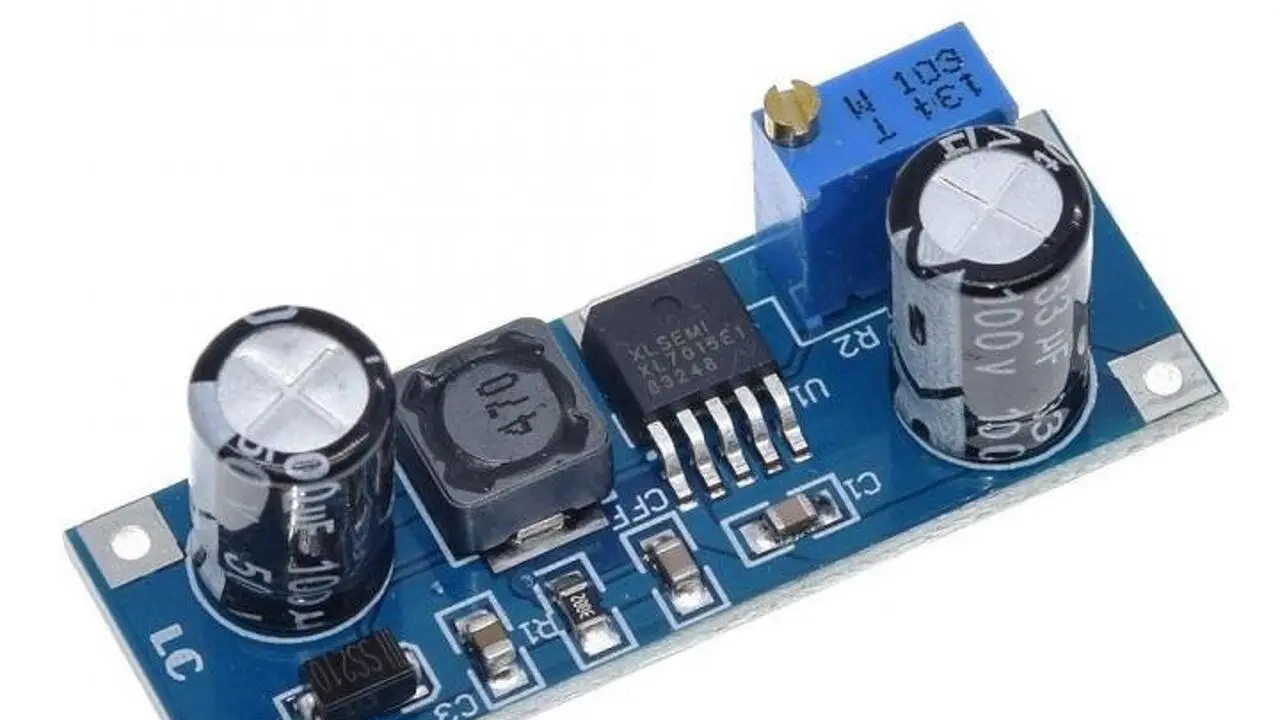

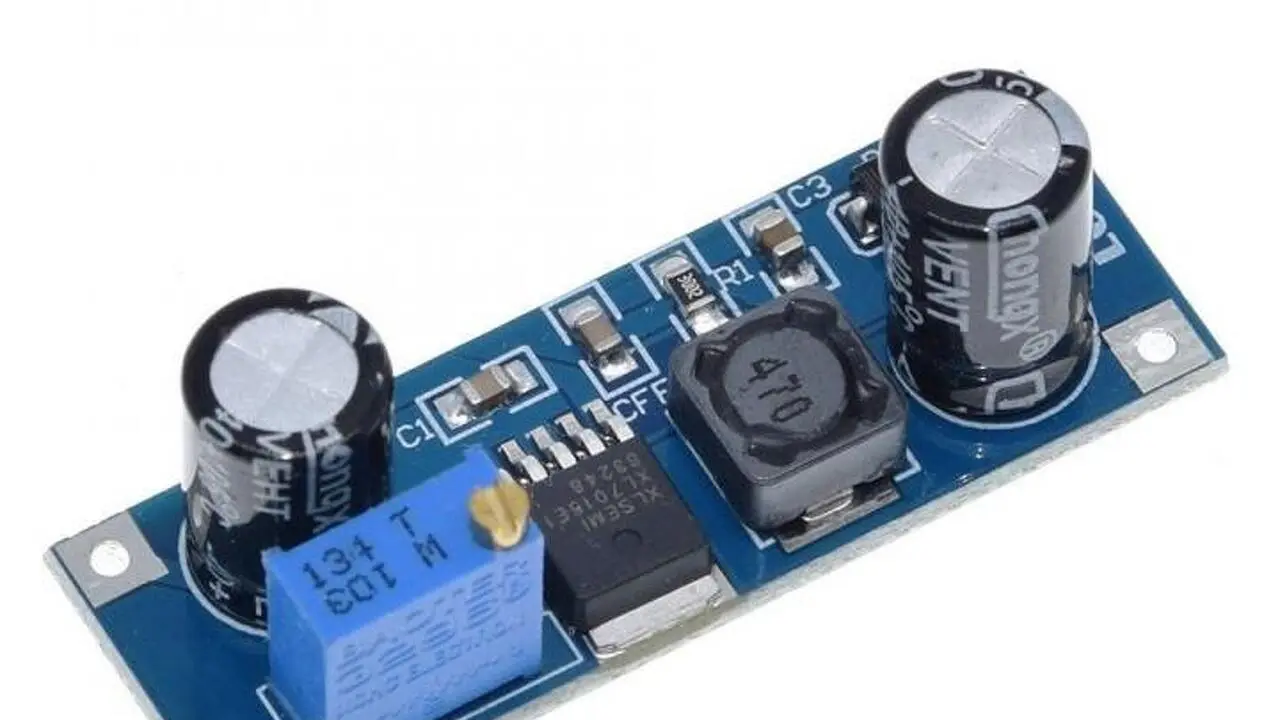

XL7015 DC-DC converter step down, IN: 5-80V, OUT: 5-20V (0.8A)
Romania, Prahova, Campina
Publicat 1 lună zi în urmă
ID #43828
1 - 1 de 8
49 Lei
XL7015 DC-DC converter step down, IN: 5-80V, OUT: 5-20V (0.8A)
Romania, Prahova, Campina,
Publicat 1 lună zi în urmă
Descriere

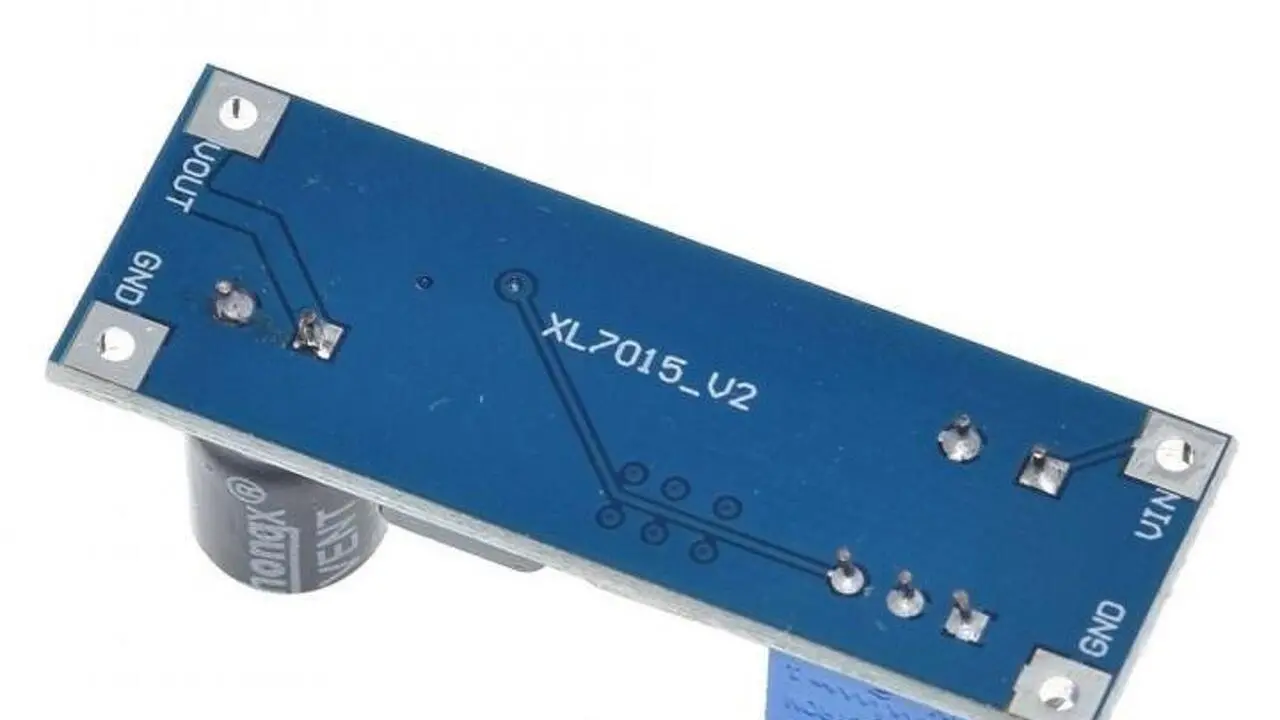

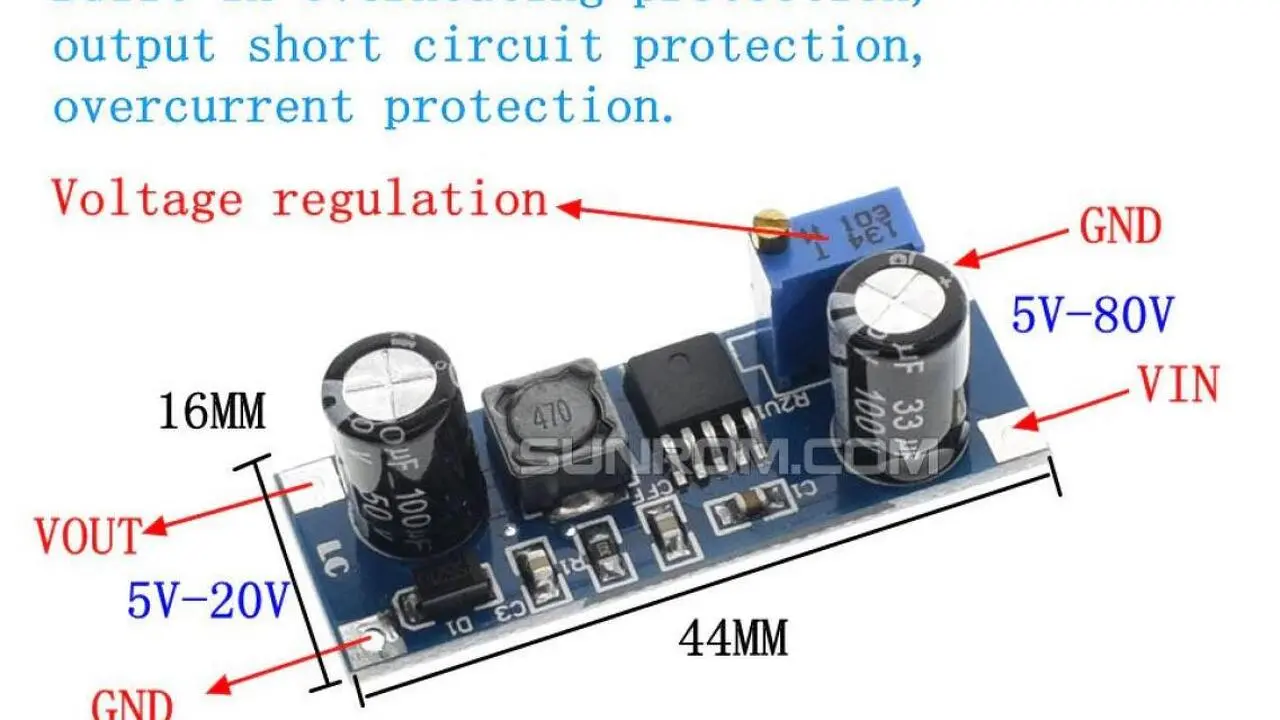

DC-DC converter step down, IN: 5-80V, OUT: 5-20V (0.8A) XL7015 (DC.428) Produsul este nou! Produsul este la fel cu cel prezentat in fotografii! Wiring instructions: 1. VIN: input voltage (5v - 80v) 2. The GND: input voltage side 3. The VOUT: output voltage (5v - 20v) 4. The GND: output voltage to end 1. 5 v to 80 v input voltage range wide 2. The output voltage from 5 v to 20 v adjustable 3. The minimum pressure drop 1 v 4. 0.8 A biggest switch current 5. Recommend the output power is less than 7 w 6. Shut off built-in overheating protection, output short circuit protection, over current protection 7. Good linear with load regulation The board size: 16 mm * 44 mm
